Procedure on how to setup an On-Line Multi-player Game.
These instructions will walk you through how to get set up to play
on-line with fellow gamers in a multi player format. This can also be
used for just two players by eliminating the multiplayer steps.
First I will cover hosting a game. You will need your IP address
to host a game. Open your games main program. For these examples I will
be using the War of 1812 game. When you get to the main screen you need

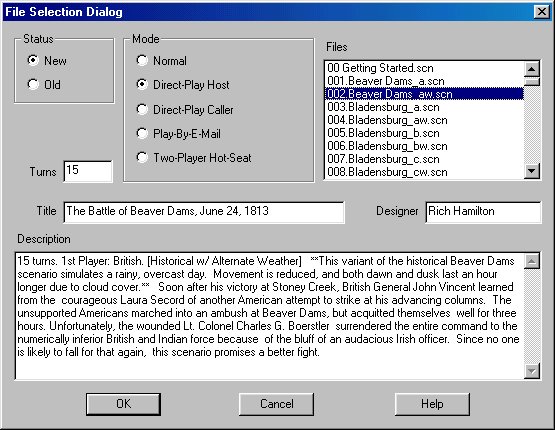

to select a few things. The screen looks like this:
You will need to select the "New" option in
the top left corner. Then the "Direct Play Host" option in the top
center, and finally the scenario you wish to play. When ready click the
Next this screen will display:
Type in your name. Then click OK.
The next screen to display looks like this:
In this box we are going to select the
"Internet TCP/IP Connection for direct play" option. If you were on a
LAN you could use IPX, or if you were playing with just 2 people you
could use the modem or serial option. When ready click OK.
Once you do this, the game will start. BUT, unlike a normal
game, then map will not appear nor will any normal dialog boxes. Only
this one will show up at first:
This dialog box is used to chat with other
players in the game. Use the "Send to my side only" box to send the
message only to your team mates.
This will be the case until another member joins the game (who has selected to play the opposing force).

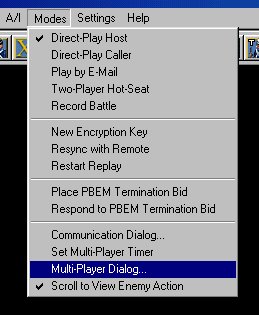

While you are waiting you can go to the "Modes" menu and select the "Multiplayer Dialog…" selection.

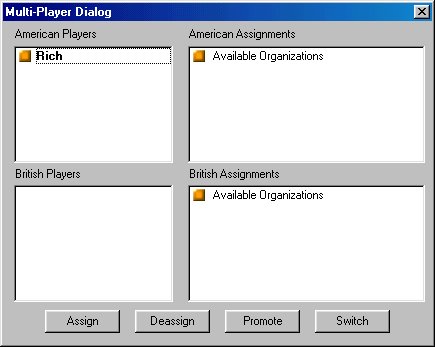

The following window will appear.
Once other players join the game, and more
than 2 players are on a side, you can assign specific units to each
player. Once this is done only that player can command those units.
When all players are present and ready to go you can set the optional rules and away you go!
One other point is worth mentioning here. The "Set Multi-Player
Timer" option from the "Modes" menu allows you to place a time limit on
how long each team has to accomplish their turn. At the end of that
time the turn automatically changes to the opposing force…
To be a Direct-Player caller (not the host), follow these
instructions. Start your main program. Once the main screen comes up
select the "Direct-Play Caller" option from the top center of the

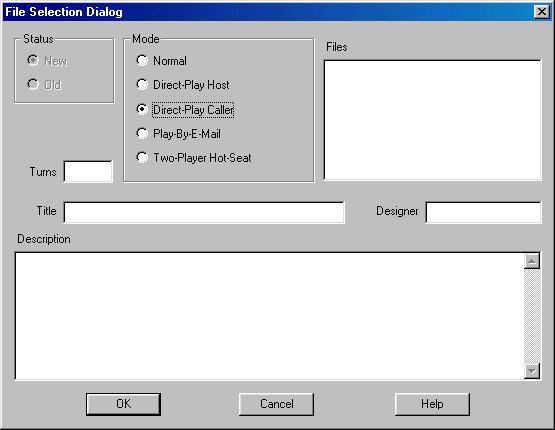

You will then be given the following screen
where you do 2 things. Type in your name and make a choice whether you
wish to play on the same side as the host or not. Click OK when ready.
You are now given the choice of connection types, choose "Internet TCP/IP Connection for Direct-Play". Click OK

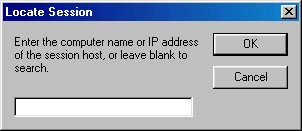

You will then be given another box.
Here you need to enter the Host's computer name, his
IP address, or you can leave it blank and it will search the web for
available games. It is recommended that you use the person's IP
address. This can be found by going to the "Run" menu on the computer

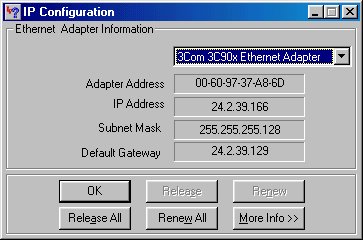

and typing "winipcfg". A window like this will appear:
(back to top)
Once you enter the information, click ok. You will be connected
to the game shortly. The host will then complete the settings for the
game. If you are the commander of the opposing forces you can also make
assignments for your army.
